RJ45 Connector Without Transformer

An RJ45 connector without a transformer is the connector alone — housing, contacts and shell, with no isolation magnetics inside. The transformer sits on the PCB instead, which keeps the magnetics choice with your PHY vendor and usually lowers connector cost and height. TeleWire Technology manufactures 116 of them in Taiwan.

  • Your PHY vendor specifies its own magnetics, qualified with the silicon.
  • The port carries no Ethernet — RJ45 housings are widely used for serial and console interfaces needing no isolation.
  • Height or cost is the constraint — a discrete jack is shorter and cheaper than the equivalent MagJack.

Shielded and unshielded, Cat5e and Cat6 rated, tab-up and tab-down, right-angle and vertical, through-hole and SMT. Cross-references cover TE Connectivity, Amphenol, Molex and Bel Fuse.

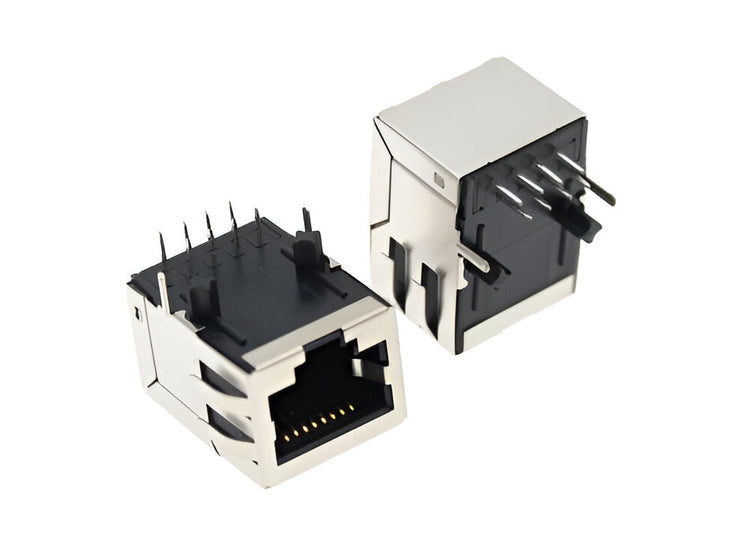

Non-integrated RJ45 modular jack connector, shielded & unshielded options available, TeleWire Technology
ISO 9001:2015
Certified Quality
Taiwan Factory
Direct Manufacturing
US Technical Sales
Direct Engineering Support
TE Connectivity Alternative
Cross-Reference Support

Can't Find The RJ Connector You Need?

Our website lists only a fraction of our capabilities. We manufacture thousands of modular jacks not shown online. Upload your drawing or specs here, and we will conduct the cross-reference for you.

Custom Gold Plating (Up to 50u")
Robust Shielding Options
Diverse Form Factors
Pin-to-Pin Cross Compatibility
Same-day engineering review
High-Temp Materials for Reflow
Request for Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Industry Applications

Proven Performance Across Industries

Industrial Motherboards

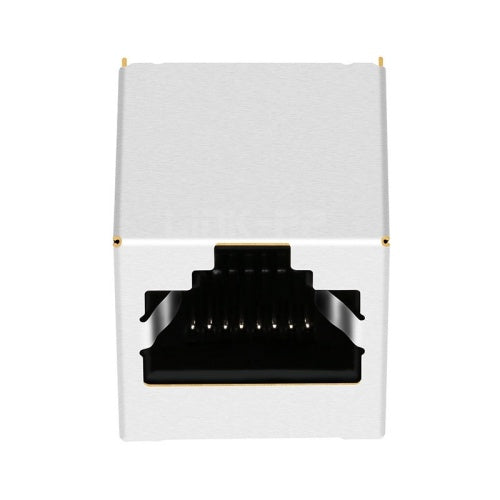

Vertical mount jacks for IPCs and embedded boards requiring top-entry cable access.

Patch Panels

High-density multi-port (2x4, 2x6) stacked jacks for networking hubs and patch panels.

Consumer Electronics

Cost-effective unshielded jacks for Set-Top Boxes, Game Consoles, and Smart TVs.

Laptops & Thin Clients

Ultra-low profile (sunk type) connectors to minimize device height.

Telephony & VoIP

Standard RJ45 and RJ11/RJ12 discrete jacks for VoIP phones and communication hardware.

Medical Devices

High-reliability jacks with 50u" gold plating for diagnostic equipment ports.

Why Choose Our Non-Integrated RJ45 Modular Jacks?

Taiwan-Made Precision Engineering

Unlike generic commodity connectors, our jacks are engineered in Taiwan with high-precision stamping and molding to ensure consistent mechanical stability.

Optimized Signal Integrity

We prioritize strict pin alignment to prevent impedance mismatch, guaranteeing reliable performance in high-speed Cat5e and Cat6 applications.

Flexible Production Support

We support both high-mix, low-volume orders for specialized projects and large-scale mass production for global supply chains.

Cost-Effective Discrete Architecture

Designed specifically for boards with separate LAN transformers, providing a premium mechanical interface without unnecessary component costs.

Why Choose Our Non-Integrated RJ45 Modular Jacks?

Technical FAQs

Common questions from procurement and engineering teams.

What is a Non-Integrated (Discrete) RJ45 Connector?

A Non-Integrated or 'Discrete' RJ45 connector is a standard modular jack that does not contain internal magnetic transformers. The magnetic isolation and filtering components are placed separately on the PCB (LAN Transformer). This architecture is often used to lower connector costs or to accommodate specific board layouts.

Are your discrete RJ45 jacks compatible with reflow soldering?

Yes. We offer high-temperature discrete jacks made with LCP (Liquid Crystal Polymer) or High-Temp Nylon housing materials specifically designed to withstand IR reflow soldering temperatures (up to 260°C), making them ideal for automated SMT assembly lines.

What performance categories (Cat5e/Cat6) are available?

Although the connector is passive, the physical geometry affects performance. We manufacture discrete jacks that meet Cat5e (100MHz) and Cat6 (250MHz) physical layer requirements, ensuring minimal crosstalk and return loss when paired with the appropriate PCB layout and magnetics.

Do you offer samples for testing and validation?

Yes, we support OEM/ODM projects with samples for engineering validation. For standard "catalogue" parts, samples can often be shipped within 48 hours. For custom specifications, we can produce prototypes quickly due to our in-house engineering in Taiwan.

Can I customize the gold plating thickness on the contact pins?

Absolutely. Standard specifications often call for Gold Flash or 6u". However, for harsh environments or industrial applications, we can upgrade the contact area to 15u", 30u", or 50u" gold plating to prevent oxidation and ensure long-term durability over thousands of mating cycles.
