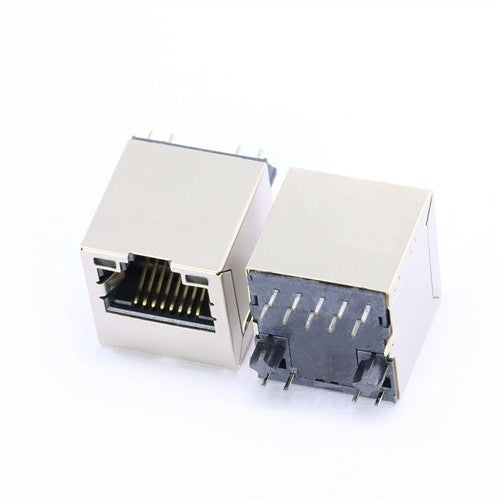

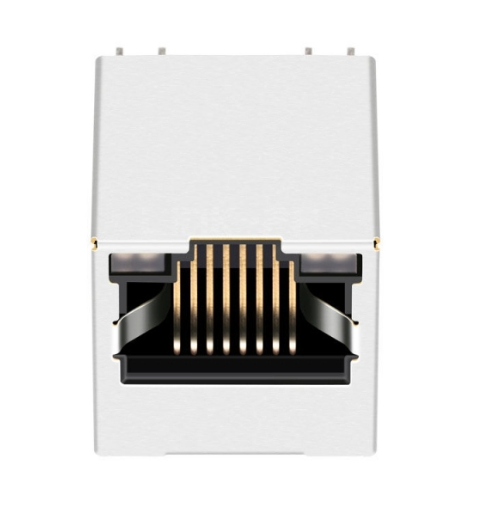

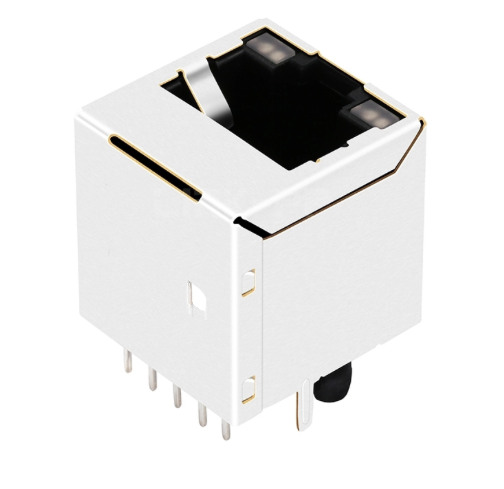

TWDK5712B5NL, 1000 Base Vertical RJ45 with Transformer Tab Up with Green&Yellow/ Green&Yellow Led
Skip to product information
Open media 1 in modal
Open media 2 in modal
Open media 3 in modal
1
/
of
3
TWDK5712B5NL, 1000 Base Vertical RJ45 with Transformer Tab Up with Green&Yellow/ Green&Yellow Led
TWDK5712B5NL, 1000 Base Vertical RJ45 with Transformer Tab Up with Green&Yellow/ Green&Yellow Led
Compatible with
TE/ Tyco: 2301995-4
High-performing device supports speeds of 10/100/1000 Base-T
Compliant with multiple industry standards, ensuring reliable and efficient usage
Perfect for Network Firewall, Machine, and Smart Camera
Add to cart
This item is a recurring or deferred purchase. By continuing, I agree to the
cancellation policy
and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.
Couldn't load pickup availability
Refresh
Share
Share
Link
Close share
Copy link
View full details
Packaging
Details
Package
Tray
Carton size
32*30*31cm
Qty/carton
1200pcs
G.W/carton
8.5kg
Product Features
RJ Type
10P8C(RJ45)
Tab
Up
LED
Green&Yellow/ Green&Yellow
Shielding
Shield
PCB Mount Type
Through Hole
Temperature
-40℃ ~ 85℃
Speed
10/100/1000 Base-T
Ports
1x1
Orientation
Vertical (180°)
PoE
-
AutomDX
Yes
Contact Material
Gold
Contact Plating
1u"/ 6u"/ 15u"/ 30u"/ 50u"
PCB Material
FR4
Certification
RoHS Compliant
Lead Time
4 Weeks
Product Length (Inches/mm)
0.849/ 21.56
Product Width (Inches/mm)
0.628/ 15.95
Product Height (Inches/ mm)
0.650/ 16.51
